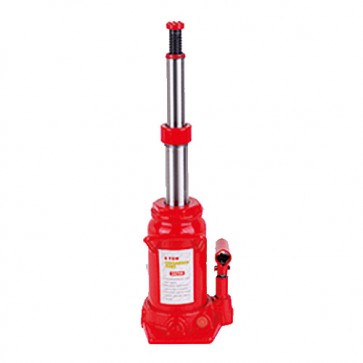

High Quality Telescopic Bottle Jack Description
| Product Name | Telescopic Bottle Jack | ||||
| SKU | 320037 | 320038 | 320039 | 320040 | 320041 |
| Lifting Weight (T) | 2 | 4 | 6 | 20 | 32 |
| Min Height (mm) | 160 | 165 | 230 | 235 | 250 |
| Lifting Height (mm) | 170 | 170 | 260 | 285 | 280 |
| Adjust Height (mm) | 50 | 60 | 60 | 50 | / |
| Max Height (mm) | 380 | 385 | 550 | 570 | 530 |
| N.W. (KG) | 4.5 | 4.7 | 6 | 45.5 | 22.0 |
| Package | Box | Box | Box | Color Box | Color Box |
| Size (cm) | 28.5x26.5x18.5 | 29.5x27.5x18.5 | 33.5x29.5x25.5 | 20x19x25 | 23x21x26 |
| QTY/CTN (pcs/ctn) | 4 | 4 | 4 | 1 | 1 |
| G.W. (KG) | 19 | 20 | 25 | 16.5 | 23 |
| 1x20' Container (pcs) | 3700 | 3400 | 3050 | 950 | 670 |
High Quality Telescopic Bottle Jack Features
1. The rocker arm can be assembled easily and the rocker arm cover an area of small.
2. The top of jack expands the friction surface, which has a better effect on anti-skidding.
3. The Jack has a relief valve and the relief valve automatically start when product overload.
4. The base is thick, it is more stable when we use the Jack.
5. The high quality screw can adjust the height and the screw do not easy to be corroded.
High Quality Telescopic Bottle Jack Advantage
This kind of jack is high efficiency. The double hydraulic jack is taller than other single hydraulic jack. The hydraulic rod of jack can lift twice. The jack min height is 160 mm but the max height is 380 mm. In the same size of jack, the double ram bottle jack can lift more height. So the size of double ram bottle jack is smaller than the same lifting weight of jack. The double ram bottle jack is covering an area of small.
