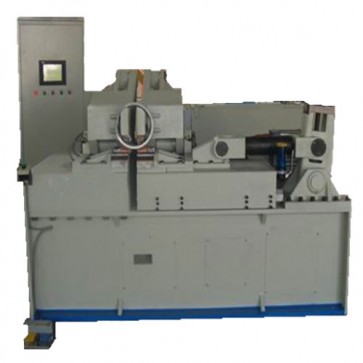

High speed Stable operation Flash butt welder 364073

High speed Stable operation Flash butt welder 364073:


Features:
a.Using pneumatic vertical pressure or pneumatic lever pressure,the workpiece clamping firmly,which makes the welded joint beautiful,fastness,slag inclusion.
b.Welded machine is the novel box structure,ingenious,high strength,good rigidity.It has good wearability,high speed welding ,stable pressurizing since its high precision steering mechanism.
c.The microcomputer constant pressure control system can achieve the most accurate control during the welding process of preheat,flash and upsetting.It is more convenient to adjust than the normal butt welding machine.It just need the minimum power capacity to weld the same section of workpiece,it means low energy consumption.
d.High permeability silicon steel sheets,secondary extensional organization,high output current,environmental protection.
e.The water transformer and water SCR is easy to heat dissipation,so it extend the life of equipment.
f.Widely used in high quality welding of various tube,stick,plate,copper,aluminum,iron,stainless steel and so on.

SKU: 364073

about Engdas Tools

engdas company

Description

Details

High speed Stable operation Flash butt welder 364073:

About the products information:
a.Rated power:40,63,80,100,150,200,400KVA
b.Input Voltage:380V
c.Max short circuit current:17,19,22,29,36,42,80KA
d.Max upsetting force:6000,12000,18000,40000,80000N
e.Max clamping force:8000,30000N
f.Cooling water flow:2.5,3.0,4.0,6.0L/min
g.Welding square:80,120,160,200,300,400,700mm
h.Air capacity:63,80,100,160,200A
i.Rated Duty Cycle:20%
j.Weight:185,260,275,360,400,560,680kgs

Packaging&Shipping
According to the customer's need,we ship goods by air,sea and express.
Packing Details: Standard packing or according to the customer's requirements.
Delivery Detail:30-35 days after received the 30 percent deposit.
