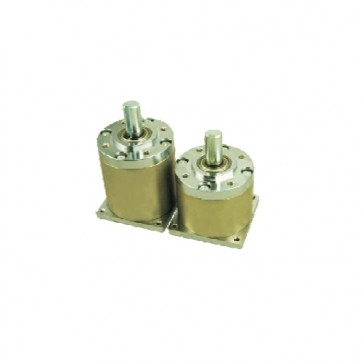

Housing material:Metal.
Backlash,at no-load:≤1.2°.
Bearing at output:Ball bearings.
Radial play of shaft:≤0.05mm.
Thrust play shaft:≤0.3mm.
Attention:The broken torque of the gearbox is 150kgf.cm.When the motors using at low speed,high gear ratio,please choose low power motors,and no protection measurements.
| Pinion Specifications | ||
| Module | 1.0 | 1.0 |
| No. of teeth | 12 | 15 |
| Pressure angle | 20° | |
| Hole dimameter | φ5.97 | φ5.97, φ7.96 |
| Reduction ratio | 4.3, 22.7, 121, 276, 326, 409 514, 1567, 2321, 3439 |
3.6, 13, 19.2, 46.7, 69 102, 198, 843, 995, 1966 |
| Operating temperature range | -10℃~+60℃ | |
| Operating relative humidity | 20%~85%RH | |
| Gearboxes Specifications | |||||
| Reduction ratio | Rated tolerance torque | Max breaking torque | Efficiency | No. of stages | Gearbox Length "L"mm |
| 3.6, 4.3 | 50.0kgf.cm | 150.0kgf.cm | 90% | 1 | 34.1 |
| 13, 19.2, 22.7 | 100.0kgf.cm | 300.0kgf.cm | 81% | 2 | 48 |
| 46.7, 69, 102, 121 | 200.0kgf.cm | 600.0kgf.cm | 73% | 3 | 61.9 |
| 198, 276, 326, 409, 513 | 200.0kgf.cm | 600.0kgf.cm | 65% | 4 | 75.8 |
| 843, 995, 1567, 1966 2321, 3439 |
200.0kgf.cm | 600.0kgf.cm | 59% | 5 | 92.2 |
