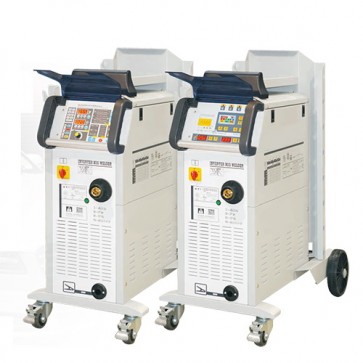

Descriptions of mig spot weld machine:
| SKU | 601034 | 601035 | 601036 |
| Input Voltage | 400V/230V | ||
| Rated Input Power | 11KVA | 10KVA | 8KVA |
| Rated Input Current | 17A | 15A | 12A |
| Output Voltage | 35-320A | 35-300A | 35-260A |
| Output Current | 15.7-33V | 15.7-31V | 15.7-30A |
| Duty Cycle Rate | 250-320A(100%-65%) | 220-300(100%-65%) | 200-260A(100%-65%) |
| Non load Voltage | 55V | 50V | 50V |
| Efficiency | ≥90% | ||
| Power Factor | ≥0.95 | ||
| Insulation Grade | F | F | |
| Frequency | 60-120KHz | 60-120KHz | 60-120KHz |
| Steel Wire | Dia 0.6-1.2mm | ||
| Aluminum Wire | Dia 0.8-1.2mm | ||
| Copper Wire | Dia 0.6-1.6mm | Dia 0.6-1.4mm | Dia 0.6-1.2mm |
| Wire Feeder | Four Roll Driven | ||
| Main Size | 93*35*83cm | ||
| Weight | 92kg | 90kg | 88kg |
Accesories of mig spot weld machine:
1. Durable air tube
2. High quality chain
3. Multi-functional welding gun
4. High quality shield case and contact tip
5. 200g Anti-blocking agent
6. Durable fuse
7. Heating regulator
8. Durable high quality fuse
9. Welding gun holder
10. Caster and wheels
Features of mig spot weld:
1. High quality pulsed function.
2. Welding gun holder with special protect cover.
3. Special separate wire feeder for easy use.
4. Easy to working for long way distance welding.
5. The user could store the welding date easily and safely.
6. High quality control system with multifunctional digital control board.
