Hot selling end automatic drain descriptions:

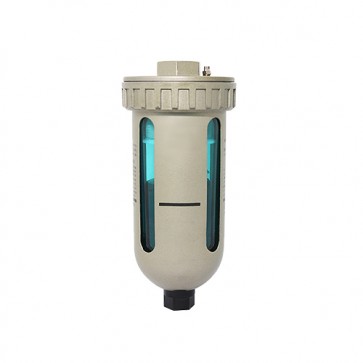

Name: Hot selling end automatic drain
SKU: 355299-355301
Drain Status: Normal Open Type
Ensured Pressure Resistance: 1.5MPa
Operating Pressure Range: 0.15~1.00Mpa
Ambient and Fluid Temperature: 5~60℃
Working Medium: Compressed Air
| Specifications | ||
| SKU | Port Size(G) | Drain Bore(G) |
| 355299 | 1/4" | 1/8" |
| 355300 | 3/8" | |
| 355301 | 1/2" | |
Hot selling end automatic drain features:
1. It is commonly used in frozen air dryer, oil-water separator and a variety of air filter at the bottom of the water.
2. Polymer material and excellent sealing, high-strength heat so it is not easy to aging.

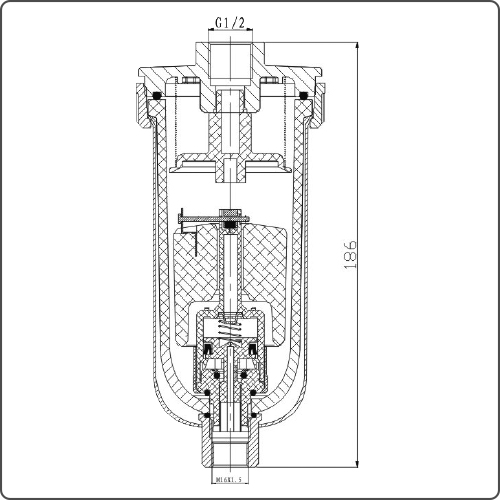

3. Unique float lever structure, low row position, more stable drainage
4. Automatic drain filters excess air vapor, oil droplets and solid impurities in compressed air to make components work better.
5. Automatic drain valves, Small structure so it is easy to install and use.
Hot selling end automatic drain advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use. The greatest advantage that the regulator offers is the ease of use. This product often applies to auto remove the seeper at the lower places of piping, frozen type air drying machine oil separator, air storge tanks and the bottom of various air filter, It can be install led in the places inconvenient for manual discharge of sewage, such as higher, lower and narrow places, especially there has large consumption of air frequent water drains, It can prevent the compressed air being re-polluted by condense water resulting from neglect of manual drain.
