Industrial purpose of pneumatic filter regulator lubricator descriptions:

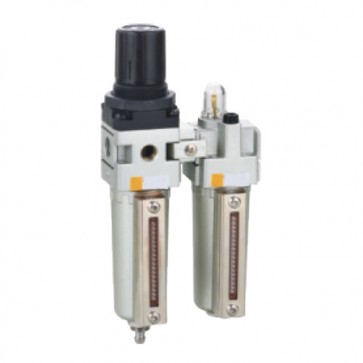

Name: Industrial purpose of pneumatic filter regulator lubricator
SKU: 355209-355217
Accessory: Bracket
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Recommended Oil Use: Turbine NO.1 Oil ISOVG32
Body Material: Aluminum Die Casting
Pressure Regulating Range: 0.05~0.85MPa
Valve Type: With Overflow
| Specifications | ||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) |
| 355209 | 500 | 1/8'' | 1/8'' | 0.75 |
| 355210 | 1/4'' | |||
| 355211 | 1700 | 1/4'' | 1/8'' | 1.15 |
| 355212 | 3/8'' | |||
| 355213 | 3000 | 3/8'' | 1/4'' | 2.10 |
| 355214 | 1/2'' | |||
| 355215 | 3000 | 3/4'' | 1/4'' | 2.30 |
| 355216 | 4000 | 3/4'' | 1/4'' | 3.50 |
| 355217 | 1'' | |||
Industrial purpose of pneumatic filter regulator lubricator features:
1. The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
2. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
3. The interior is designed to make the product more durable and more comfortable.
4. Oil control valve, the latest design, self-regulation of oil, accurate and convenient.
5. The use of air compression can store energy so as to achieve centralized gas supply.
6. Complete size specifications to meet different needs.
Industrial purpose of pneumatic filter regulator lubricator advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate. And the oil control valve, the latest design, self-regulation of oil, it is more accurate and convenient.
