Description
Details

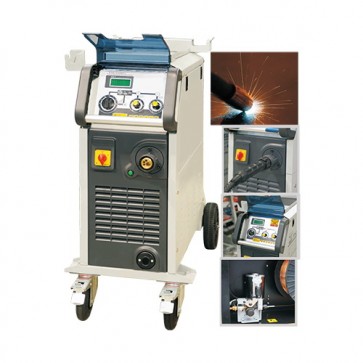

Description of auto body and repair machine:
| SKU | 601022 | 601023 | 601024 | 601025 | 601026 | 601027 | 601028 |
| Input Voltage | 220V/380V(50/60HZ) | ||||||
| Max Input Current | 10.3A | 9.8A | 9.6A | 9.5A | 16.4A | 13.5A | 12.5A |
| Rated Input Current | 13.6A | 12.8A | 10.8A | 10.6A | 21.6A | 17.6A | 16.8A |
| Output Voltage | 35-250A | 35-220A | 35-200A | 35-200A | 35-200A | 35-280A | 35-250A |
| Output Current | 17-26.5V | 17-25V | 17-24V | 17-24V | 17-30A | 17-28V | 17-26.5V |
| Duty Cycle Rate | 35% | 35% | 35% | 35% | 35% | 35% | 35% |
| Non-load Voltage | 20-32A | 20-31V | 20-30V | 20-30V | 20-40V | 20-38V | 20-37V |
| Insulation Grade | F | F | F | F | F | F | F |
| Welding Wire | Dia 0.8-1.0mm | Dia 0.8-1.0mm | Dia 0.8-1.0mm | Dia 0.8-1.0mm | Dia 0.8-1.0mm | Dia 0.8-1.0mm | Dia 0.8-1.0mm |
| Welding Reel | Dia 300mm | Dia 300mm | Dia 300mm | Dia 300mm | Dia 300mm | Dia 300mm | Dia 300mm |
| Voltage Adjustable Grade | 6/10 | 6 | 6 | 6 | 10 | 6 | 6/10 |
| Size | 38*85*89cm | 38*85*89cm | 38*85*89cm | 83*36*72cm | 38*85*89cm | 38*85*89cm | 38*85*89cm |
| Weight | 96kg | 90kg | 85kg | 70kg | 105kg | 100kg | 98kg |
Accessories of auto body and repair machine:
1. 15AK welding gun
2. Earth clamp
3. 2A and 4A fuse
4. 0.8 and 1mm contact tip
5. Gas regulator
6. Durable air tube
7. High quality chain
8. 1 pc tray
9. 1 pcs Anti-blocking agent
10. Caster and wheels
Features of auto body and repair machine:
1. Adopted integrated circuit and functional modules to makes the operation steady and smooth.
2. Easy adjustment for easy operation.
3. Independent development machine for high reliability and high efficiency.
4. Special micro process control system.
5. Voltage auto detect function.
6. Multi-bridge rectifier.
7. High precision two-way time adjustment system.
8. Adopted high quality wire feeder.
9. Practical advanced reliable technology.
10. High quality relay and transformer.
11. Gun testing function switch.
12. PET Hot press formed control panel.
13. Digital control system for convenient operation.
14. Less spatters for high efficiency.
