Typical Applications
Pan/Tilt cameras,Grill,Oven,Cleaning machine,Garbage disposers,Packing bank note machine,Coffee machine,Medical machine,Manotat,Amusement equipment,infusion pumps,Office equipment,Household appliances,Automatic actuator.
| Gearbox Data | |||||
| No. of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.7, 5.2 | 13.7, 19.2, 26.9 | 50.9, 71.2, 99.5, 139 | 188, 264, 369 516, 721 |
699, 977, 1367, 1911, 2672 3736 |
| Gearbox length "L"mm | 37.3 | 38.9 | 50.5 | 62.1 | 73.7 |
| Max.Gear running torque | 30.0Kgf.cm | 80.0Kgf.cm | 150Kgf.cm | 150Kgf.cm | 150Kgf.cm |
| Max.Gear breaking torque |
90.0Kgf.cm |
240.0Kgf.cm | 450Kgf.cm | 450Kgf.cm | 450Kgf.cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data | |||||||||
| Motor name | Rated Volt.(V) | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||

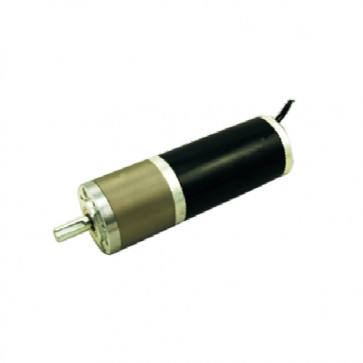

| 171061 | 12 | ≤650 | 3000 | ≤4900 | 2550 | 1316 | 35.1 | 6416 | 21.1 |
| 171062 | 24 | ≤450 | 3000 | ≤2880 | 2623 | 1634 | 44.8 | 8712 | 13.8 |
| After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio. | |||||||||
Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ12.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
