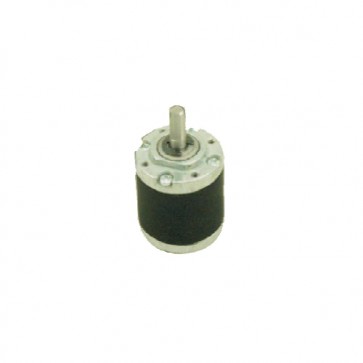

Housing material:Metal.
Backlash,at no-load:≤1.0°.
Bearing at output:Sleeve bearings.
Radial play of shaft:≤0.05mm.
Thrust play shaft:≤0.2mm.
Attention:The broken torque of the gearbox is 12kgf.com.When the motors using at low speed,high gear ratio,please choose low power motors,and no protection measurements.
| Pinion Specifications | ||
| Module | 0.3 | 0.3 |
| No. of teeth | 15 | 18 |
| Pressure angle | 20° | |
| Hole dimameter | φ1.98 | |
| Reduction ratio | 4, 16, 19, 64, 90 ,256, 304, 361, 428, 815, 1024, 1263, 1500, 2036 |
3.5, 12.3, 42.8, 150, 525 |
| Operating temperature range | -10℃~+60℃ | |
| Operating relative humidity | 20%~85%RH | |
| Gearboxes Specifications | |||||
| Reduction ratio | Rated tolerance torque | Max breaking torque | Efficiency | No. of stages | Gearbox Length "L"mm |
| 3.5, 4 | 1.0kgf.cm | 3.0kgf.cm | 90% | 1 | 13.9 |
| 12.3, 16, 19 | 2kgf.cm | 6kgf.cm | 81% | 2 | 17.5 |
| 42.8, 64, 90 | 4.0kgf.cm | 12kgf.cm | 73% | 3 | 21.1 |
| 150, 256, 304, 361, 428 | 4.0kgf.cm | 12kgf.cm | 65% | 7 | 24.7 |
| 712, 1024, 1263, 1444, 1500, 2036 | 4.0kgf.cm | 12kgf.cm | 59% | 5 | 28.3 |
