Pneumatic components symbols air filter combination descriptions:

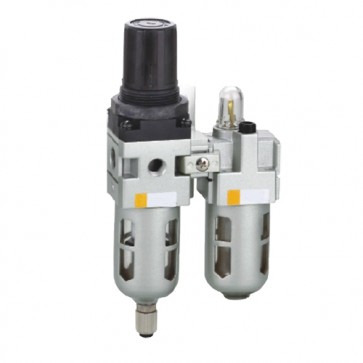

Name: Pneumatic components symbols air filter combination
SKU: 355162-355170
Accessorirs: 2 Brackets
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Recommended Oil Use: Turbine NO.1 Oil ISOVG32
Body Material: Prolycarbanate
Protective Cover: Available
Pressure Regulating Range: 0.05~0.85MPa
Valve Type: With Overflow
| Specifications | |||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) | Protective Cover |
| 355162 | 500 | 1/8'' | 1/8'' | 0.66 | Not Available |
| 355163 | 1/4'' | ||||
| 355164 | 1700 | 1/4'' | 1/8'' | 0.98 | |
| 355165 | 3/8'' | Available | |||
| 355166 | 3000 | 1/8'' | 1/4'' | 1.93 | |
| 355167 | 1/2'' | ||||
| 355168 | 3000 | 3/4'' | 1/4'' | 1.99 | |
| 355169 | 4000 | 3/4'' | 1/4'' | 3.20 | |
| 355170 | 1'' | ||||
Pneumatic components symbols air filter combination features:
1. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
2. Stainless steel bracket, so more stable and more relieved to use.
3. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
4. Pressure valve, pull up to unlock, self-regulating air pressure.
5. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
6. The interior is designed to make the product more durable and more comfortable.
7.Adopt fast fittings on filter, filter wasted water with connected tubes directly to keep environment clean.
Pneumatic components symbols air filter combination advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components. And the filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments. Besides, it also has stainless steel bracket, so more stable and more relieved to use. In addition, Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
