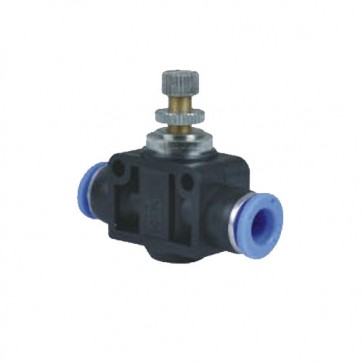

Quick Release Hose Connector TLSA,THVFF,THVFS,TPM 354091-354094:
| Inch | Metric | D1 | D2 | B | F | J | d |
| 5/32-5/32 | 04-04 | φ4 | 38 | 13 | 11.5 | 30 | 3 |
| 1/4-1/4 | 06-06 | φ6 | 48.5 | 20 | 15 | 44 | 4.2 |
| 5/16-5/16 | 08-08 | φ8 | 53.8 | 22 | 18 | 48 | 4.2 |
| 3/8-3/8 | 10-10 | φ10 | 61.5 | 25.5 | 21 | 54 | 4 |
| 1/2-1/2 | 12-12 | φ12 | 75 | 31.8 | 28.2 | 57 | 5 |
