Description
Details

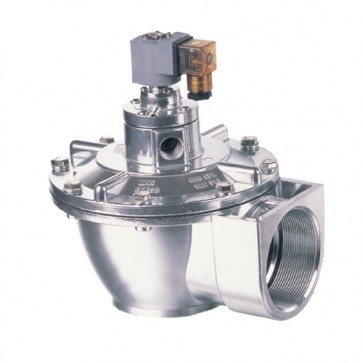

Right angle pneumatic pulse valve description:
Name: Right Angle Pulse Valve

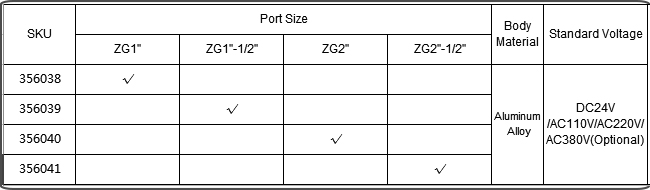

SKU: 356038-356041
Acting Type: Diaphragm Pilot
Working Pressure Range: 0.05~1.5MPa
Working Temperature: -5~60℃
Voltage Range: ±10%
Power Consumption: AC12V,AC24V,AC36V,AC110V,AC220V,AC380V；DC12V,DC24V,DC110V
Shortest Activate Time: 0.05 Second
Right angle pneumatic pulse valve features:
1. High-speed discharge of air caused by shock waves.
2. Fast response time and large through flow.
3. Main valve switch speed is high, improving the work efficiency.
4. It can be used to make the dust valve controller.
5. Suitable for all firms pulse injection or gas filter box.
Right angle pneumatic pulse valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. High-speed discharge of air caused by shock waves. And the main valve switch speed is high, so improving the work efficiency. And it can be used to make the dust valve controller.
