Roller button mechanical pneumatic valve description:
Name: Mechanical Valve

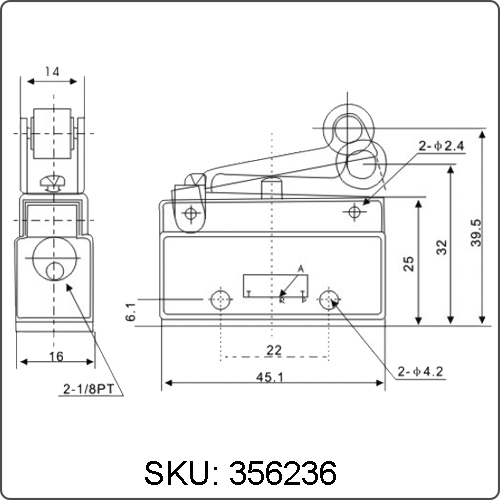

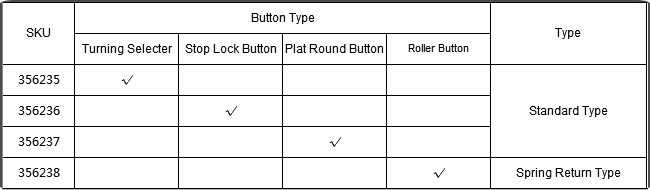

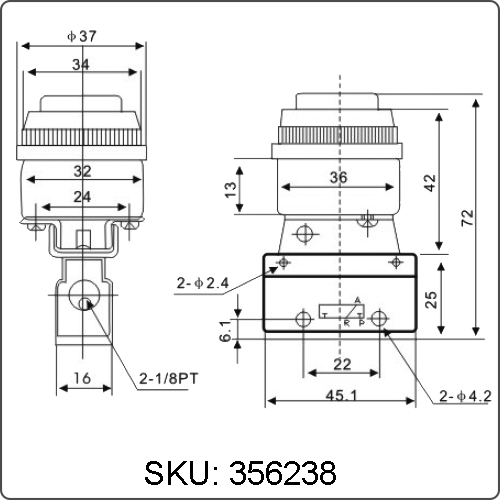

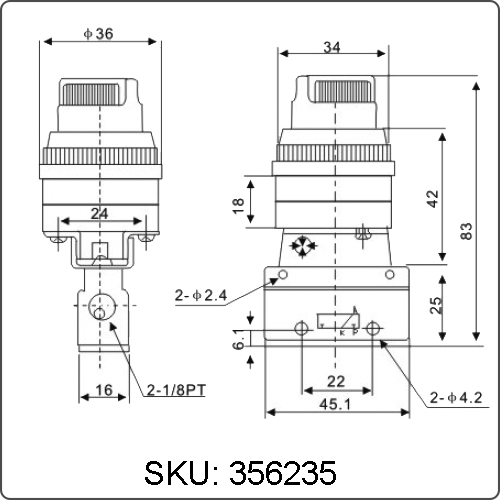

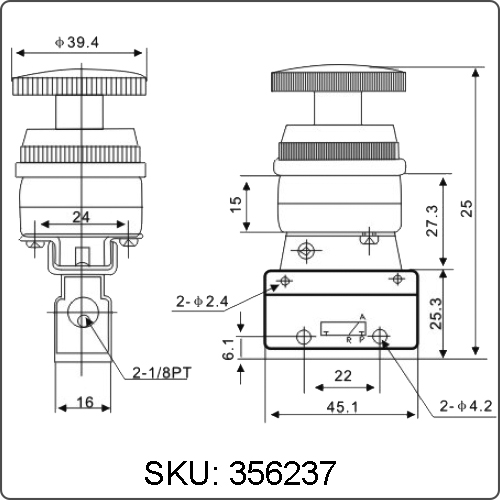

SKU: 356235-356238
Port Size: G1/4"
Position And Way No.: Two-position Three-way
Working Medium: Air(40 Micron Filtered)
Working Pressure Range: 0~0.8MPa
Working Temperature: 0~60℃
Roller button mechanical pneumatic valve features:
1. This tool can service for longer time due to its excellent properties.
2. This tool can apply to the large constructions, including water or heat supply in city constructions, nuclear power plant and so forth.
3. This tool adopts corrugated pipe that makes full use of energy and provides a clean circumstance.
4. There is a special design of double sealing property, which will increases safety when it works.
Roller button mechanical pneumatic valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. Mechanical valves play a very important role in all walks of life. It has two sealing surface, Applicable to a wide range of diameter from small to a few millimeters, And it can achieve a complete seal. It has also been widely used In the vacuum system.This tool can service for longer time due to its excellent properties. And this tool adopts corrugated pipe that makes full use of energy and provides a clean circumstance.
