Description
Details
Two-position diaphrage solenoid valve symbols description:

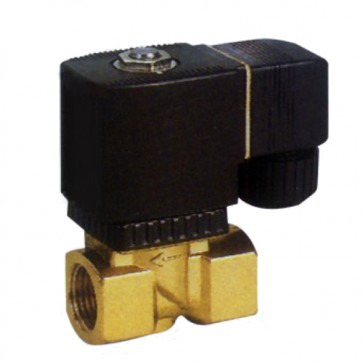

Name: Two-position Two-way Diaphrage Solenoid Valve
SKU: 356202-356211
Ambient Temperature: -10~+50℃
Medium Temperature: -10~+80℃
Position And Way No.: Two-position Two-way
Two-position diaphrage solenoid valve symbols features:
1. The selection of plastic coil can improve the safety in many environments.
2. With the electromagnetic force on the casing of the iron core to complete, there is no dynamic seal, so leakage is easy to block.
3. Solenoid valves are particularly safe to use, especially for corrosive, toxic or high-temperature media.
4. Small size, saving space and beautiful.
Two-position diaphrage solenoid valve symbols advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious.The selection of plastic coil can improve the safety in many environments. And with the electromagnetic force on the casing of the iron core to complete, there is no dynamic seal, so leakage is easy to block.
