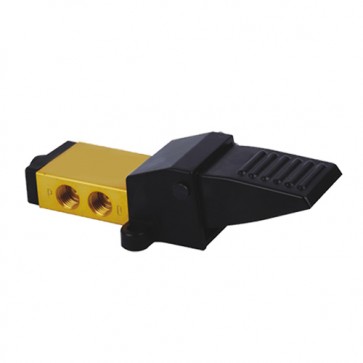

Two-position five-way air foot valve description:
Name: Foot Valve

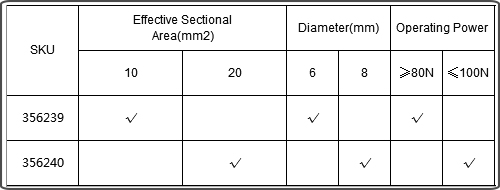

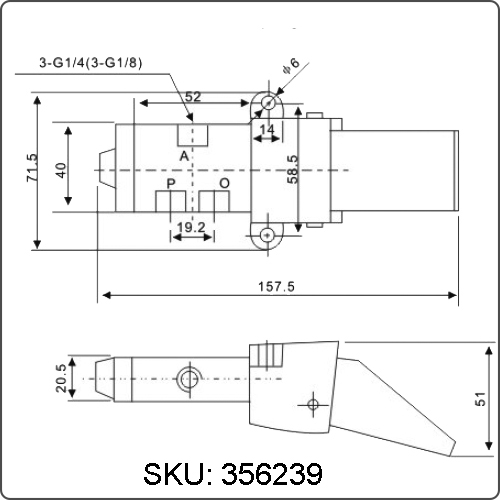

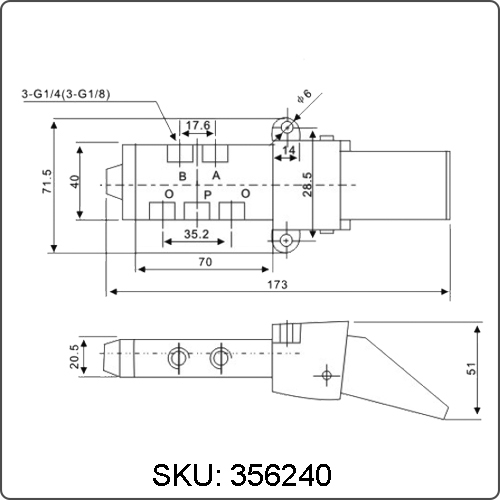

SKU: 356239-356240
Pore Size: G1/4"
Leaking Out Amount(cm3/min): ≤50
Working Medium: Compressed Air
Working Pressure Range: 0.05~0.8Mpa
Ambient Temperature: -5~+55℃
Medium Temperature: -10~+55℃
Natural Life(Thousand): ≥200
Position And Way No.: Two-position Five-way
Two-position five-way air foot valve features:
1. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
2. Its own structure is simple, easy to install and maintain.
3. Locking mechanism is stable and reliable, easy to unlock.
4. The use of processing center valve body, processing more accurate.
Two-position five-way air foot valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. The foot valve has the advantages of small size, beautiful appearance , longer service life and so on. It combines all the advantages of the check valves for the most efficient, cost competitive foot valves in the marketplace.Compared with the hydraulic, pneumatic mode can be used in high temperature occasions. And the locking mechanism is stable and reliable, so it is easy to unlock.
