Description
Details

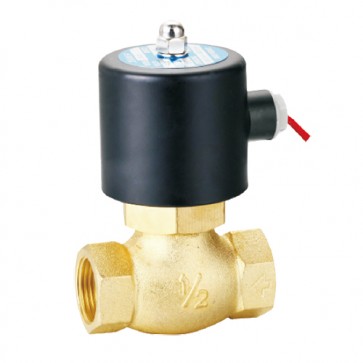

Two-position two-way steam valve description:
Name: Steam Valve

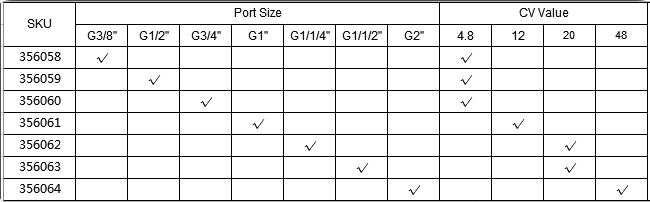

SKU: 356058-356064
Working Medium: Air,Water,Oil
Position And Way No.: Two-position Two-way
Acting Type: Guide Type
Type: Normal Close Type
Operation Fluid Viscosity: 20CST Below
Working Pressure Range: 0.1~1.5MPa
Max.Pressure Resistance: 1.0Mpa
Working Temperature: -5~80℃
Voltage Range: ±10%
Body Material: Brass
Material of Oil Seal: PTFE
Standard Voltage: DC12V/DC24V
/AC24V/AC36V/AC110V/AC220VAC380V(Optional)
Two-position two-way steam valve features:
1. Steam valve, With a radiator to protect the actuator to ensure a longer life.
2. Made of copper core coil, resulting in more stable magnetic, so the switch control is more accurate.
3. Applicable to a variety of fluid media to meet different needs.
4. Solenoid valves are particularly safe to use, especially for corrosive, toxic or high-temperature media.
5. Choosing brass for body material, more durable.
Two-position two-way steam valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. As an actuator of automated instrument, solenoid valves have seen sharp increase in use in recent years. It is an energy-saving product. As the solenoid valve is controlled by switch signal, it’s very convenient to connect it to computers. In today’s world where computer use is widespread and its price drops significantly, the advantages of the solenoid valve is even more obvious. With a radiator to protect the actuator to ensure a longer life. And it made of copper core coil, resulting in more stable magnetic, so the switch control is more accurate.
