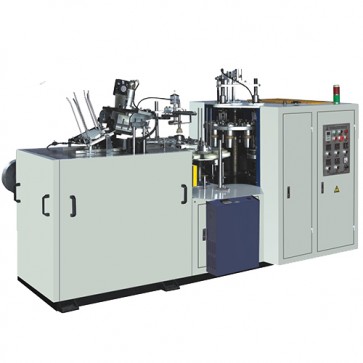

Ultrasonic Double PE Coated Paper Cup Machine 710005

It has the function of photocell detection, failure alarm, with the advantage of humanism design, safe operation, easy maintenance and durable running.

SKU: 710005

about Engdas Tools

engdas company

Description

Details

Automatic Single PE Coated Paper Cup Machine

SKU 710005 710006 710007
Paper cup size 2-12oz 12-16oz 16-22oz
Paper Material 160-350g/m² One-side or two side PE(polyethylene) film coated/laminated paper 160-350g/m² One-side or two side PE(polyethylene) film coated/laminated paper 160-350g/m² One-side or two side PE(polyethylene) film coated/laminated paper
Rated productivity 40-50pcs/min 35-40pcs/min 30-35pcs/min
Power source 220/380v 50hz 220/380v 50hz 220/380v 50hz
Working aie source Air oressure: 0.4Mpa
Air out-out: 0.25m²/min

Air oressure: 0.4Mpa
Air out-out: 0.25m²/min

Air oressure: 0.4Mpa
Air out-out: 0.25m²/min

Total power 7kw 7kw 7kw
Weight 1500kg 1500kg 1700kg
Packing dimensions 2750x1320x1750mm 2880x1320x1850mm 2950x1320x1950mm

Ultrasonic double PE coated paper cup machine is an automatic machine with multi working stations. It firstly works a procedure of single side PE coated paper feeding, then cup side welding(by ultrasonic), silicone oil lubrication(for top curling). Then the ultrasonic double PE coated paper cup machine runs a procedure of bottom punching, bottom folding, preheating, bottom heating, bottom knurling, top curling and cup discharging. The ultrasonic double PE coated paper cup machine is an ideal equipment for production of single and double PE coated paper cup machine. Ultrasonic double PE coated paper cup machine has the function of photocell detection, failure alarm, with the advantage of humanism design. The machine can make disposable paper cups for all kinds of drinks, like coffee cup, tea cup, cold beverage cup,beer cup, ice cream cup, etc.

Ultrasonic Double PE Coated Paper Cup Machine Specification
- Paper cup bottom sealing by hot air station.
- It is easy to make cups of different size by changing moulds.
- Cup side sealing by ultrasonic.
- Double PE coating paper cups for cold drink as well as hot drinks.
- Equiped with robotic arm and 3 pillar shafts each side, which let the machine work more stable.
- With the unique original designed single shaft bottom knurling system. It ensure the low leaking ratio and high quality of paper cups.
- Sucker import from Taiwan, which can reach 100 million times' life span.
- Design with special cover, the machine is very good for heat dissipation and ensure the longer life span.
- All the machine covers could be taken down in 2 minutes. It is very convenient for repair and daily maintenance.

To produce the cups, a special cardboard paper with single or double side PE lamination is used.
Precut paper is feeding automatically to a cone mould, and then the two edges are welded by ultrasonic, without any glue. At the same time, the bottom paper roll is die cut and fed to the cup, then, the cup bottom is preheated and folded with the bottom paper, and goes to the next station. Heating and the knurling, then next station is cup top curling. At last, the paper cup is finished and delivered.
After quality check, counting and packaging cup is ready for further use.
