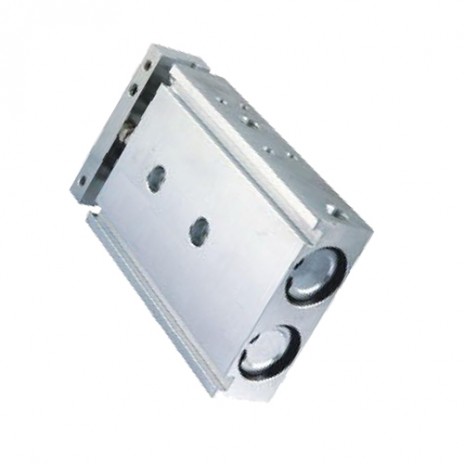

CXS pneumatic cylinder tube Double Action Type :
| SKU | 357175 | 357176 | 357177 | 357178 | 357179 | 357180 | |
| Bore | 6 | 10 | 16 | 20 | 25 | 32 | |
| Motion Pattern | Air | ||||||
| Working Medium | Double Action | ||||||
| Max.Pressure | 0.7Mpa | ||||||
| Min.Pressure | 0.15Mpa | 0.1Mpa | 0.05Mpa | ||||
| Operating Piston Speed | 30-300 | 30-800 | 30-700 | - | 30-600 | - | |
| Environment and Fluid Temp | -10-60℃ | ||||||
| Cushion | Both Ends Buffer | ||||||
| Structare | Double Power | ||||||
| Oil Feed | Not Need | ||||||
| Stroke Adjustable Range | 0-5mm | ||||||
| Bearing | Slide Bearing/Ball Guide Bearing | ||||||
| Precision of Piston Rod Non-Rotating | ±0.1° | ||||||
| Port Size | M5×0.8 | 1/8" | |||||
Feature:
1.The two sides of cylinder both have inlet and exhaust for practical use.
2.It has high precision without good guide performance.
3.It adopts the extended sliding support guid with good guid performance.
4.Hard oxidation cylinder body and baffle which is high in hardness.
5.It has strong magnetic induction of hard quality.
