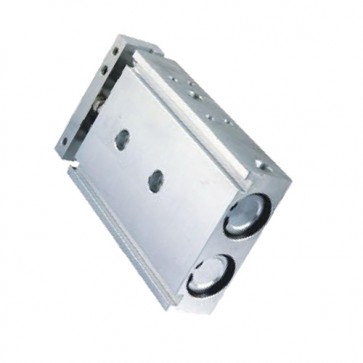

CXS pneumatic cylinder tube Double Action Type 357175

1.High Precision without rotation
2.Hard quality
3.High hardness
4.Good guide performance

SKU: 357175

about Engdas Tools

engdas company



CXS pneumatic cylinder tube Double Action Type :

SKU          357175 357176 357177 357178 357179 357180
Bore 6 10 16 20 25 32
Motion Pattern   Air
Working Medium   Double Action
Max.Pressure   0.7Mpa
Min.Pressure   0.15Mpa 0.1Mpa 0.05Mpa
Operating Piston Speed   30-300  30-800  30-700 - 30-600 -
Environment and Fluid Temp -10-60℃
Cushion  Both Ends Buffer
Structare Double Power
Oil Feed Not Need
Stroke Adjustable Range 0-5mm
Bearing   Slide Bearing/Ball Guide Bearing
Precision of Piston Rod Non-Rotating  ±0.1°
Port Size M5×0.8 1/8"

1.The two sides of cylinder both have inlet and exhaust for practical use.
2.It has high precision without good guide performance.
3.It adopts the extended sliding support guid with good guid performance.
4.Hard oxidation cylinder body and baffle which is high in hardness.
5.It has strong magnetic induction of hard quality.
