Description
Details
New latest filter regulator lubricator descriptions:

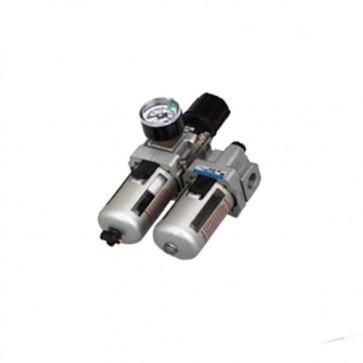

Name: New latest filter regulator lubricator
SKU: 355362-355368
Accessory: Bracket
Ensured Pressure Resistance: 15.3kfg/cm2
Hightest Working Pressure: 10.2kgf/cm2
Ambient and Fluid Temperature: -5~60℃
Filter Precision: 5μm
Pressure Regulating Range: 0.51~8.67kgf/cm2
Recommended Oil Use: Turbine NO.1 Oil ISOVG32
Body Material: Polycarbonate
Valve Type: With Overflow
| Specifications | ||
| Model | Port Size(G) | Pressure Gauge Size(G) |
| 355362 | 1/8'' | 1/8'' |
| 355363 | 1/4'' | |
| 355364 | 1/4'' | |
| 355365 | 3/8'' | |
| 355366 | 1/4'' | 1/4'' |
| 355367 | 3/8'' | |
| 355368 | 1/2" | |
New latest filter regulator lubricator features:
1. Polymer material and excellent sealing, high-strength heat so it is not easy to aging.
2. The meter uses the standard module design, it can arbitrarily decompose the combination to meet the needs of different pneumatic system.
3. Pressure valve, pull up to unlock, self-regulating air pressure.
4. Exhaust treatment is simple, so it does not pollute the environment and low cost.
5. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
New latest filter regulator lubricator advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.The polymer material and excellent sealing, high-strength heat so it is not easy to aging. And the meter uses the standard module design, it can arbitrarily decompose the combination to meet the needs of different pneumatic system.
