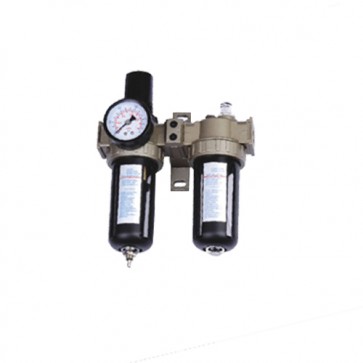

Air filter combination filter regulator lubricator unit 355323

Air filter combination filter regulator lubricator unit descriptions:

Name: Air filter combination filter regulator lubricator unit
SKU: 355323-355325
Accessory: Bracket
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 5μm/50μm
Recommended Oil Use: Turbine NO.1 Oil ISOVG32
Body Material: Polycarbonate
Pressure Regulating Range: 0~1.0MPa
Valve Type: With Overflow
Protection cover: Available

Air filter combination filter regulator lubricator unit features:

1. Pressure valve, pull up to unlock, self-regulating air pressure.
2. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
3. Exquisite appearance, surface oxidation spray treatment, more durable and corrosion resistant.
4. Stainless steel bracket, so more stable and more relieved to use.
5. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.

Air filter combination filter regulator lubricator unit advantages:

As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.And the pressure valve design, pull up to unlock, so it can self-regulating air pressure. Besides, Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
