Air filter combination filter regulator lubricator function 355066

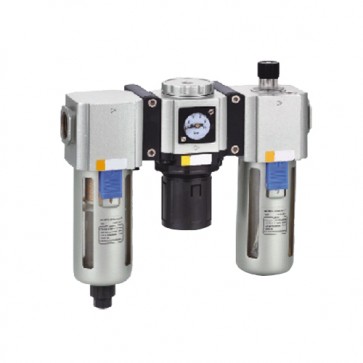

Name: Air filter combination filter regulator lubricator function
SKU: 355066-355070
Temperature Range: 5~60℃
Ensured Pressure Resistance: 1.5MPa
Grade of Filtration: 40μm or 5μm

SKU: 355066

about Engdas Tools

engdas company

Description

Details

Air filter combination filter regulator lubricator function description:

Name: Air filter combination filter regulator lubricator function
SKU: 355066-355070
Temperature Range: 5~60℃
Ensured Pressure Resistance: 1.5MPa
Grade of Filtration: 40μm or 5μm
Working Medium: Compressed Air
Manual And Differential Pressure Drainage Type: 0.15~0.19Mpa
Manual Drain: 0.05~0.9Mpa

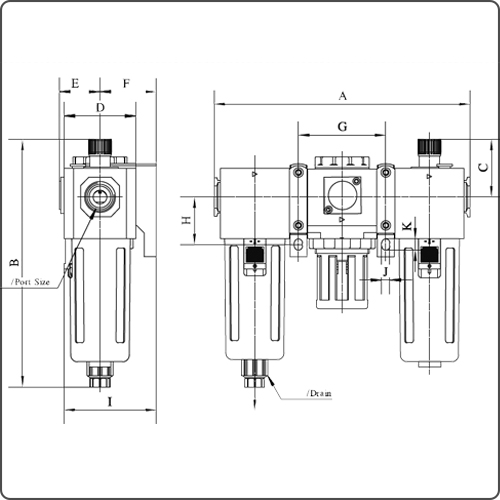

Specifications
 Model Port Size(G)  Filter Water Capacity Oil Cup Capacity Weight(kg)
355066 1/8''  15CC 25CC 0.58
355067 1/4''
355068 1/4''   40CC 75CC 1.35
355069 3/8''
355070 1/2''



filter regulator lubricator function

filter regulator lubricator function

Air filter combination filter regulator lubricator function features:

1. It can accurately control the liquid level, the filter drainage methods have two options, which is differential pressure drainage and manual drainage.
2. Fully sealed connection, no leakage phenomenon and not easy to be loosed.
3. High-quality filter so its filter effect is better and it also has a longer lifetime.
4. Oil control valve, the latest design, self-regulation of oil, accurate and convenient.
5. Exhaust treatment is simple, so it does not pollute the environment and low cost.

Air filter combination filter regulator lubricator function advantages:

As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.It can accurately control the liquid level, the filter drainage methods have two options, which is differential pressure drainage and manual drainage. And it is designed from fully sealed connection, no leakage phenomenon and not easy to be loosed.

oil mist system
