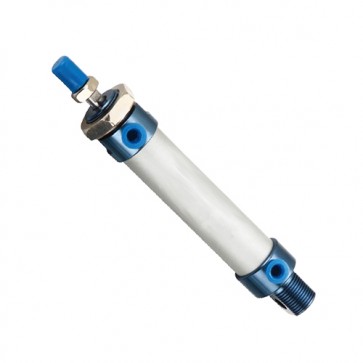

MAL cylinder pneumatic Double Action or single Action Type 357050

1.Good plasticity
2.Good guidance
3.Compact size function

SKU: 357050

about Engdas Tools

engdas company



MAL cylinder pneumatic Double Action or single Action Type :

SKU           357050 357051 357052 357053 357054 357055
Bore 16 20 25 32 40
Motion Pattern Double Action or Single Action
Working Medium Air
Fixed Type Nomal Type/LB/FA/SDB
Operating Voltage Range 0.1-0.9Mpa
Ensured Pressure Resistance 1.35Mpa
Operating Temperature Range -5-70℃
Operating Speed Range 30-800mm/s
Buffer Type Standard Type Anti-Crash Cushion
Damping Type   Adjustable Cushion
Pipe Size M5×0.8 G1/8" G1/4"

1.The piston seal adopts the anisotropic variable-direction seal structure which has
compact size and storage function.
2.The front cover adopts lubrication bearing to make the guidance more good.
3.Threaded connections between front and rear cover and cylinder make it firmer.
4.Aluminum alloy material is easy to process and has good plasticity.
5.There is no need of refueling to lubricate for piston rod with oily bearing.
