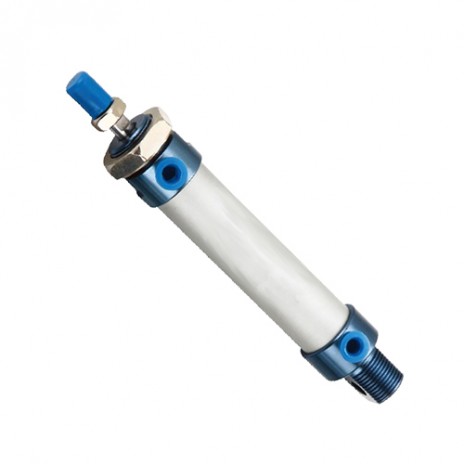

MAL cylinder pneumatic Double Action or single Action Type :
SKU | 357050 | 357051 | 357052 | 357053 | 357054 | 357055 | |
Bore | 16 | 20 | 25 | 32 | 40 | ||
Motion Pattern | Double Action or Single Action | ||||||
Working Medium | Air | ||||||
Fixed Type | Nomal Type/LB/FA/SDB | ||||||
Operating Voltage Range | 0.1-0.9Mpa | ||||||
Ensured Pressure Resistance | 1.35Mpa | ||||||
Operating Temperature Range | -5-70℃ | ||||||
Operating Speed Range | 30-800mm/s | ||||||
Buffer Type | Standard Type | Anti-Crash Cushion | |||||
Damping Type | Adjustable Cushion | ||||||
Pipe Size | M5×0.8 | G1/8" | G1/4" |
Feature:
1.The piston seal adopts the anisotropic variable-direction seal structure which has
compact size and storage function.
2.The front cover adopts lubrication bearing to make the guidance more good.
3.Threaded connections between front and rear cover and cylinder make it firmer.
4.Aluminum alloy material is easy to process and has good plasticity.
5.There is no need of refueling to lubricate for piston rod with oily bearing.
