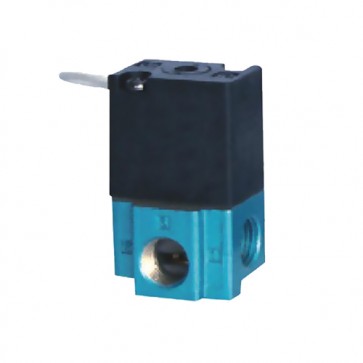

High frequency valve pneumatic control valve description:
Name: High Frequency Valve
SKU: 356260-356261
Working Pressure Range: 0~0.6MPa
Working Temperature: -5~60℃
Working Medium: Air
Max.Frequency: 30Times/Sec
Acting Type: Direct Drive Type
High frequency valve pneumatic control valve features:
1. High efficiency, high repeatability and strong environmental tolerance.
2. The use of direct-acting diaphragm structure without pressure to start, expand its use of the field.
3. Balanced valve design, reaction time is not affected by pressure.
4. Large electric circle suction to ensure fast and accurate action.
5. Have enough back force at low pressure.
High frequency valve pneumatic control valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. It has high efficiency, high repeatability and strong environmental tolerance. And the use of direct-acting diaphragm structure without pressure to start, expand its use of the field. Besides, The balanced valve design, so the reaction time is not affected by pressure.
