Air source treatment processor pneumatic components descriptions:

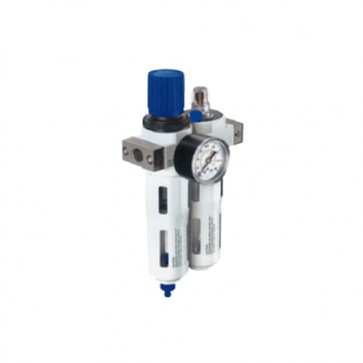

Name: Air source treatment processor pneumatic components
SKU: 355403-355410
Body material: Zinc die-casting
Cup material: PC
Working medium: Compressed air
Mounting type: Pipe mounting or foot mounting
Manualc valve drain working pressure: 1~16bar
Automatic valve drain working pressure: 1.5~12bar
Working pressure range: 0.5~12bar/0.5~7bar
Filter precision: 40μm/50μm
Working temperature range: 0~60℃
Maximum capacity of condensate fluid: 22ml
Air source treatment processor pneumatic components features:
1. Exquisite appearance, surface oxidation spray treatment, more durable and corrosion resistant.
2. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
3. The meter uses the standard module design, it can arbitrarily decompose the combination to meet the needs of different pneumatic system.
4. Exhaust treatment is simple, so it does not pollute the environment and low cost.
5. Complete size specifications to meet different needs.
Air source treatment processor pneumatic components advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.Exquisite appearance, The surface which is treated by oxidation spray, so it is more durable and corrosion resistant.Besides, Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
