Description
Details

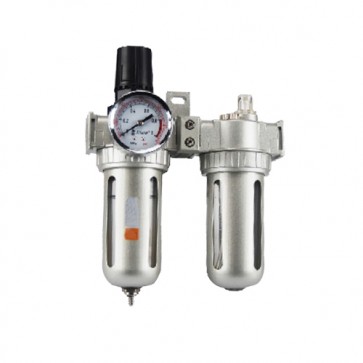

80 series filter regulator lubricator for compressed air pneumatic descriptions:
Name: 80 series filter regulator lubricator for compressed air pneumatic
SKU: 355284-355286
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
All with protection cover: Available

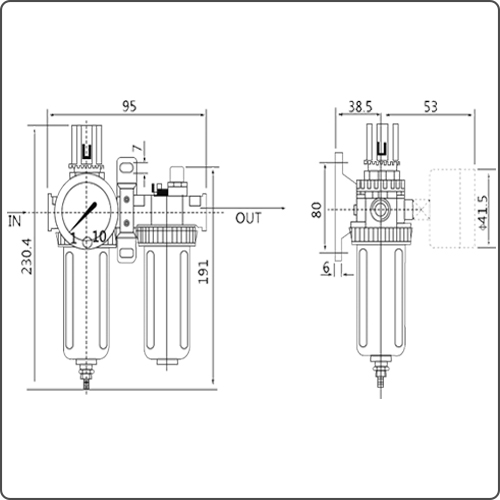

| Specifications | ||
| Model | Port Size(G) | Press Meter Diameter(G) |
| 355284 | 1/4" | 1/8'' |
| 355285 | 3/8'' | |
| 355286 | 1/2'' | |
80 series filter regulator lubricator for compressed air pneumatic features:
1. It can accurately control the liquid level, the filter drainage methods have two options, which is differential pressure drainage and manual drainage.
2. The oil mist filter in the compressed air can be filtered using an oil mist filter.
3. The interior is designed to make the product more durable and more comfortable.
4. Fully sealed connection, no leakage phenomenon and not easy to be loosed.
5. Pressure valve, pull up to unlock, self-regulating air pressure.
80 series filter regulator lubricator for compressed air pneumatic advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.It can accurately control the liquid level, the filter drainage methods have two options, which is differential pressure drainage and manual drainage.And the oil mist filter in the compressed air can be filtered using an oil mist filter.
