Description
Details
Pneumatic components suppliers oil mist descriptions:

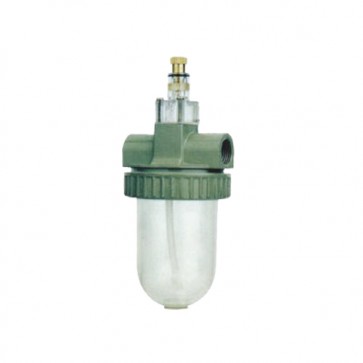

Name: Pneumatic components suppliers oil mist
SKU: 355316-355322
Working medium: Air
Cup Material: PC
Body Material: Aluminum alloy
Ensured Pressure Resistance: 15.0kgf/cm2
Working Temperature Range: 5~60℃
Recommended Oil Use:Turbine NO.1 Oil ISOVG32

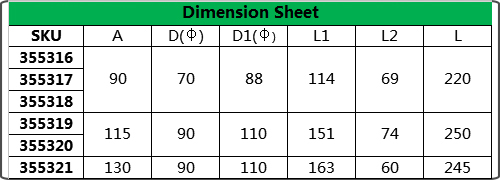

| Specifications | |
| Model | Port Size |
| 355316 | 1/4" |
| 355317 | 3/8" |
| 355318 | 1/2" |
| 355319 | 3/4" |
| 355320 | 1" |
| 355321 | 11/2" |
| 355322 | 2" |
Pneumatic components suppliers oil mist features:
1. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
2. It can adjust the size of the drop of oil casually.
3. Oil control valve, the latest design, self-regulation of oil, accurate and convenient.
4. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
5.Fine oil mist to ensure the effective protection and extended parts life.
Pneumatic components suppliers oil mist advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.What is the advantages of the lubricator? A lubricator adds controlled quantities of oil into a compressed air system to reduce the friction of moving components. And Our lubricators inject an oil aerosol into the flowing air stream to automatically provide the proper amount of internal lubricant to vital pneumatic components. Besides, our fine oil mist to ensure the effective protection and extended parts life. And The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
