Description
Details
NPT/PT/BSP port size oil mist collection descriptions:

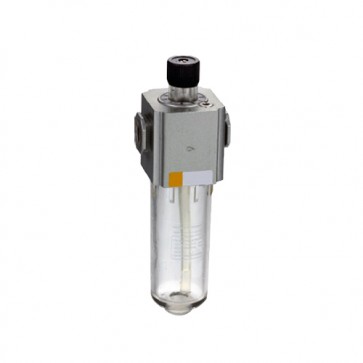

Name: NPT/PT/BSP port size oil mist collection
SKU: 355051-355055
Temperature Range: 5~60℃
Ensured Pressure Resistance: 1.5MPa
Pressure Range: 0.05~0.9MPa
Working Medium: Compressed Air
Suggest Lubricator: ISO VG32 or The Oil
| Specifications | |||
| Model | Port Size(G) | Filter Water Capacity | Weight(kg) |
| 355051 | 1/8'' | 25CC | 0.15 |
| 355052 | 1/4'' | ||
| 355053 | 1/4'' | 75CC | 0.36 |
| 355054 | 3/8'' | ||
| 355055 | 1/2'' | ||
NPT/PT/BSP port size oil mist collection features:
1. Fine oil mist to ensure the effective protection and extended parts life.
2. Transparent inspection cup, you can directly observe the size of drip.
3. The oil mist filter in the compressed air can be filtered using an oil mist filter.
4. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
5. It can adjust the size of the drop of oil casually.
NPT/PT/BSP port size oil mist collection advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.What is the advantages of the lubricator? A lubricator adds controlled quantities of oil into a compressed air system to reduce the friction of moving components. And Our lubricators inject an oil aerosol into the flowing air stream to automatically provide the proper amount of internal lubricant to vital pneumatic components.Besides, our fine oil mist to ensure the effective protection and extended parts life. The transparent inspection cup, you can directly observe the size of drip. What is more, Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
