With lock button mechanical valve symbols description:

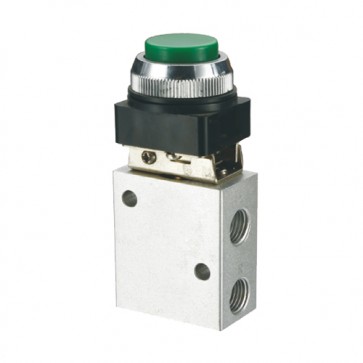

Name: Mechanical Valve

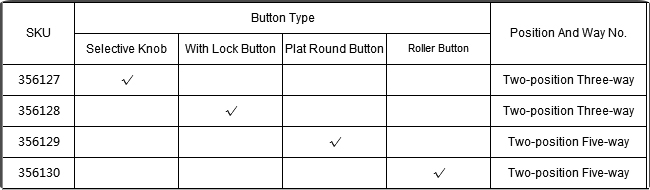

SKU: 356127-356130

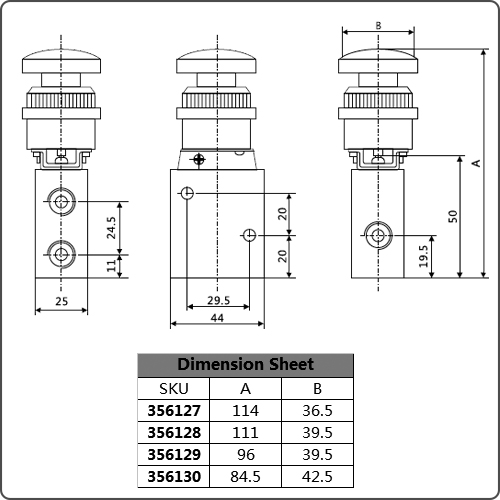

Port Size: G1/4"
Working Medium: Compressed Air
Working Pressure Range: 0~1.0MPa
Working Temperature: 0~60℃
With lock button mechanical valve symbols features:
1. The structure of this tool is simple to be maintained and installed.
2. This tool can service for longer time due to its excellent properties.
3. This tool adopts corrugated pipe that makes full use of energy and provides a clean circumstance.
4. It is convenient to manufacture or mend.
With lock button mechanical valve symbols advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. Mechanical valves play a very important role in all walks of life. It has two sealing surface, Applicable to a wide range of diameter from small to a few millimeters, And it can achieve a complete seal. It has also been widely used In the vacuum system. The structure of this tool is simple to be maintained and installed. And this tool can service for longer time due to its excellent properties.
