Description
Details

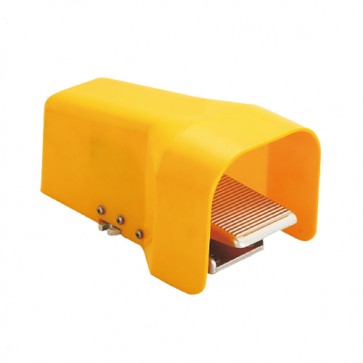

Spring reset type air brake foot valve description:
Name: Foot Valve
SKU: 356121-356124
Working Medium: Air(40 Micron Filtered)
Operating Method: Direct Drive Type
Position And Way No.: Two-position Five-way
Working Pressure Range: 0.15~0.9MPa
Working Temperature Range: 0~60℃
Spring reset type air brake foot valve features:
1. High-precision finishing process processing valve hole, longer service life.
2. Its own structure is simple, easy to install and maintain.
3. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
4. Locking mechanism is stable and reliable, easy to unlock.
Spring reset type air brake foot valve advantages:
Adopting the gas as the power source, so the pneumatic control valve is relatively safe. And if it were leaking, the gas can be discharged directly. Compared with the hydraulic and electric medium, It do not have any pollution to the environment, It has a high security at the same time. The foot valve has the advantages of small size, beautiful appearance , longer service life and so on. It combines all the advantages of the check valves for the most efficient, cost competitive foot valves in the marketplace. High-precision finishing processing valve hole, so it has a longer service life. And its own structure is simple, easy to install and maintain.
