Pneumatic air filter regulator 2000~5000 descriptions:

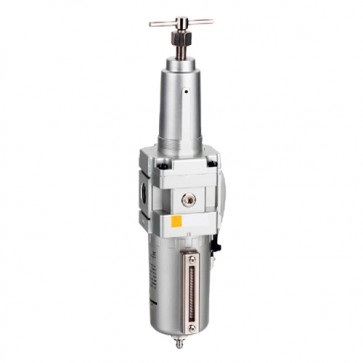

Name: Pneumatic air filter regulator 2000~5000
SKU: 355012-355020
Ensured Pressure Resistance: 2.0MPa
Hightest Working Pressure: 1.7MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Body Material: Aluminum die casting
Pressure Regulating Range: 0.05~1.7Mpa
Valve Type: Piston Type
| Specifications | ||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) |
| 355012 | 550 | 1/8'' | 1/8" | 0.36 |
| 355013 | 1/4'' | |||
| 355014 | 2000 | 1/4'' | 1/8'' | 0.56 |
| 355015 | 3/8'' | |||
| 355016 | 4000 | 3/8'' | 1/4'' | 1.15 |
| 355017 | 1/2'' | |||
| 355018 | 4500 | 3/4'' | 1/4'' | 1.21 |
| 355019 | 5500 | 3/4'' | 1/4'' | 1.70 |
| 355020 | 1'' | |||
Pneumatic air filter regulator 2000~5000 features:
1. The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
2. Push in self-locking structure, can prevent external interference.
3. Polymer material and excellent sealing, high-strength heat so it is not easy to aging.
4. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
5. Filter with regulator, Choosing aluminum alloy for body material, more durable.
Pneumatic air filter regulator 2000~5000 advantages：
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.What is the advantages of the filter and regulator? An air filter can clean compressed air. It strains the air and traps solid particles (dust, dirt, rust) and separates liquids (water, oil) entrained in the compressed air. And each of our regulator is available with an assortment of variations which enable one regulator to perform multiple functions. All regulators are built to the highest quality standards, recognized around the world for their performance, durability and reliability. And the water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate. Besides, Push in self-locking structure can prevent external interference.
