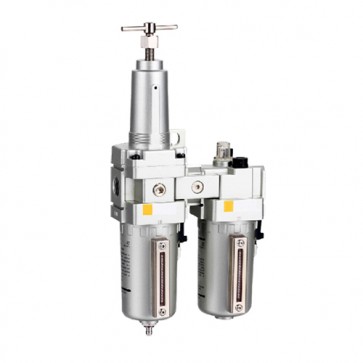

Air filter combination pressure regulating valve descriptions:
Name: Air filter combination pressure regulating valve
SKU: 355021-355029
Ensured Pressure Resistance: 2.0MPa
Hightest Working Pressure: 1.7MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Body Material: Aluminum die casting
Pressure Regulating Range: 0.05~1.7Mpa
Valve Type: Piston Type
Accessory: Bracket
Recommend Oil Use: Turbine No.1 Oil ISOVG32
| Specifications | ||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) |
| 355021 | 550 | 1/8'' | 1/8" | 0.66 |
| 355022 | 1/4'' | |||
| 355023 | 1700 | 1/4'' | 1/8'' | 0.98 |
| 355024 | 3/8'' | |||
| 355025 | 3000 | 3/8'' | 1/4'' | 1.93 |
| 355026 | 1/2'' | |||
| 355027 | 3000 | 3/4'' | 1/4'' | 1.99 |
| 355028 | 4000 | 3/4'' | 1/4'' | 3.20 |
| 355029 | 1'' | |||
Air filter combination pressure regulating valve features:
1. Choosing aluminum alloy for body material, more durable.
2. The water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate.
3. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
4. Stainless steel bracket, so more stable and more relieved to use.
5. The oil mist filter in the compressed air can be filtered using an oil mist filter
6. Polymer material and excellent sealing, high-strength heat so it is not easy to aging.
Air filter combination pressure regulating valve advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.And the water cups and oil cups are made of die-cast aluminum alloy, it is used more widely compared to conventional products which is made from polycarbonate. Besides, the filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
