Air filter combination pneumatic system components descriptions:

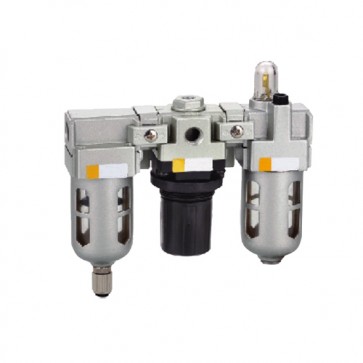

Name: Air filter combination pneumatic system components
SKU: 355171-355181
Accessorirs: 2 Brackets
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Recommended Oil Use: Turbine NO.1 Oil ISOVG32
Body Material: Prolycarbanate
Protective Cover: Available
Pressure Regulating Range: 0.05~0.85MPa
Valve Type: With Overflow
| Specifications | ||||
| Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) |
| 355171 | 500 | 1/8'' | 1/8'' | 0.81 |
| 355172 | 1/4'' | |||
| 355173 | 1500 | 1/4'' | 1/8'' | 1.13 |
| 355174 | 3/8'' | |||
| 355175 | 2000 | 1/4'' | 1/8'' | 1.20 |
| 355176 | 3/8'' | |||
| 355177 | 4000 | 3/8'' | 1/4'' | 2.39 |
| 355178 | 1/2'' | |||
| 355179 | 4500 | 3/4'' | 1/4'' | 2.50 |
| 355180 | 5000 | 3/4'' | 1/4'' | 4.10 |
| 355181 | 1'' | |||
Air filter combination pneumatic system components features:
1. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
2. Stainless steel bracket, so more stable and more relieved to use.
3. Adopt fast fittings on filter, filter wasted water with connected tubes directly to keep environment clean.
4. The meter uses the standard module design, it can arbitrarily decompose the combination to meet the needs of different pneumatic system.
5. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
6. High-quality filter so its filter effect is better and it also has a longer lifetime.
Air filter combination pneumatic system components advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.And the filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments. Besides, It adopt fast fittings on filter, filter wasted water with connected tubes directly to keep environment clean.
