Beschreibung
Details

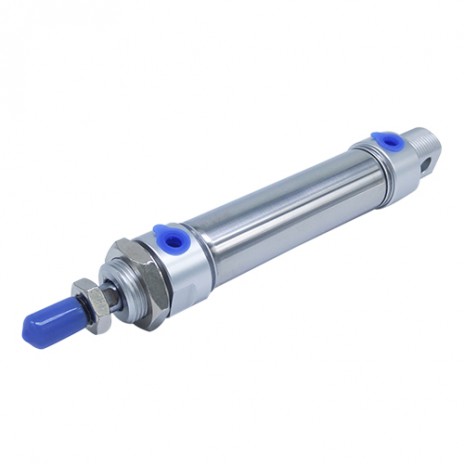

MA stainless steel air cylinder :
SKU | 357044 | 357045 | 357046 | 357047 | 357048 | |
Bore | 16 | 20 | 25 | 32 | 40 | |
Motion Pattern | Double Action or Single Action | |||||
Working Medium | Air | |||||
Fixed Type | Nomal Type/LB/FA/SDB/U | |||||
Operating Voltage Range | 0.1-0.9Mpa | |||||
Ensured Pressure Resistance | 1.35Mpa | |||||
Operating Temperature Range | -5-70℃ | |||||
Operating Speed Range | 50-800mm/s | |||||
Buffer Type | Standard Type | Anti-Carsh Cushion | ||||
Damping Type | Adjustable Cushion | |||||
Port Size | M5×0.8 | G1/8" |
Feature:
1.The whole fastening is reliable and wear-resisting durable.
2.The strength of stainless steel cylinder is high.
3.The volume of the cylinder is very small.
4.There are adjustable buffer type and end cover plus anti-collision cushion type can
be selected which has good reduction of the cylinder reversing impact and buffer smooth.
5.The connection between the end cover and the cylinder body is by using the riveting roller
package which is fastening reliable.
