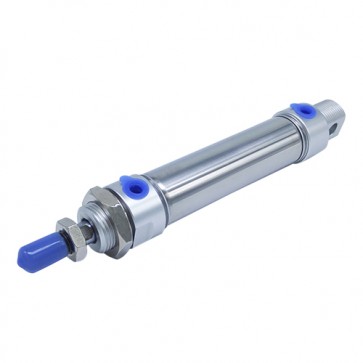

MA stainless steel air cylinder 357044

1.High strength
2.Reliable fastening
3.Small volume
4.Adjustable buffer type

SKU: 357044

about Engdas Tools

engdas company



MA stainless steel air cylinder :

SKU          357044 357045 357046 357047 357048
Bore 16 20 25 32 40
Motion Pattern Double Action or Single Action
Working Medium Air
Fixed Type Nomal Type/LB/FA/SDB/U
Operating Voltage Range 0.1-0.9Mpa
Ensured Pressure Resistance 1.35Mpa
Operating Temperature Range -5-70℃
Operating Speed Range 50-800mm/s
Buffer Type Standard Type Anti-Carsh Cushion
Damping Type   Adjustable Cushion
Port Size M5×0.8 G1/8"

1.The whole fastening is reliable and wear-resisting durable.
2.The strength of stainless steel cylinder is high.
3.The volume of the cylinder is very small.
4.There are adjustable buffer type and end cover plus anti-collision cushion type can
be selected which has good reduction of the cylinder reversing impact and buffer smooth.
5.The connection between the end cover and the cylinder body is by using the riveting roller
package which is fastening reliable.
