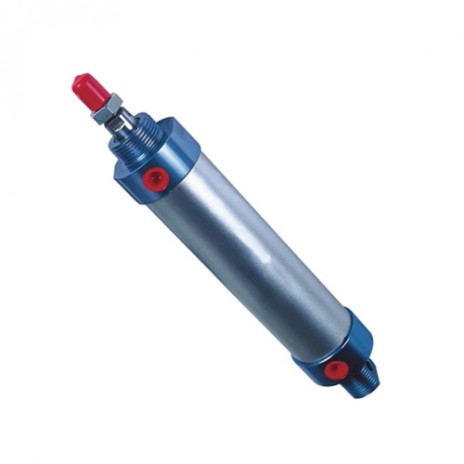

MAL air autuator cylinder Double Action or Single Action Type :
| SKU | 357223 | 357224 | 357225 | 357226 | 357227 | |
| Bore | 16 | 20 | 25 | 32 | 40 | |
| Motion Pattern | Double Action or Single Action | |||||
| Working Medium | Filterd Air | |||||
| Fixed Type | Double Action/LB/FA/SDB | |||||
| Operating Voltage Range | 1-9kgf/cm2 | |||||
| Ensured Pressure Resistance | 13.5kgf/cm2 | |||||
| Operating Temperature Range | 0-70℃ | |||||
| Operating Speed Range | 50-800mm/s | |||||
| Buffer Type | Buffer spacer | |||||
| Port Size | M5×0.8 | G1/8" | ||||
Feature:
1.The front and rear cover and the cylinder are threaded connected which make
it more firmer.
2.The piston seal adopts the anisotropic variable-direction seal structure which
has compact size and storage function.
3.The front cover adopts lubrication bearing to make the guidance more good.
4.The material of aluminum alloy is easy to process and has good plasticity.
5.There is no need to add refuel to lubricate of piston rod with the oil bearing.
