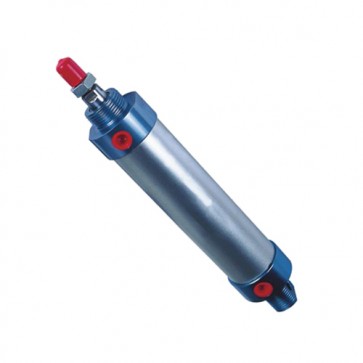

MAL air actuator cylinder Double Action or Single Action Type 357223

1.Good plasticity
2.Good guidance
3.Compact size
4.Storage function

SKU: 357223

about Engdas Tools

engdas company



MAL air autuator cylinder Double Action or Single Action Type :

SKU        357223 357224 357225 357226 357227
Bore 16 20 25 32 40
Motion Pattern   Double Action or Single Action
Working Medium Filterd Air
Fixed Type   Double Action/LB/FA/SDB
Operating Voltage Range   1-9kgf/cm2
Ensured Pressure Resistance  13.5kgf/cm2
Operating Temperature Range 0-70℃
Operating Speed Range   50-800mm/s
Buffer Type   Buffer spacer
Port Size M5×0.8  G1/8"

1.The front and rear cover and the cylinder are threaded connected  which make
it more firmer.
2.The piston seal adopts the anisotropic variable-direction seal structure which
has compact size and storage function.
3.The front cover adopts lubrication bearing to make the guidance more good.
4.The material of aluminum alloy is easy to process and has good plasticity.
5.There is no need to add refuel to lubricate of piston rod with the oil bearing.
