Beschreibung
Details

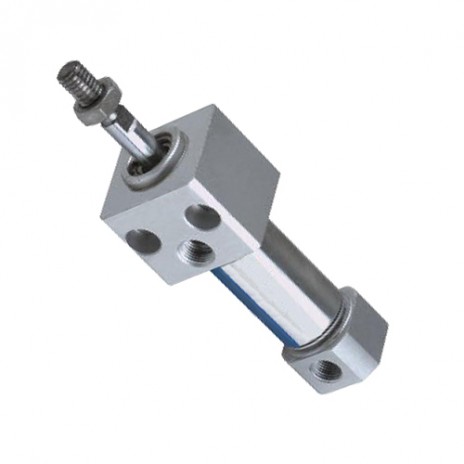

MAR air pressure cylinder Double Action Type :
SKU | 357147 | 357148 | 357149 | 357150 | 357151 | 357152 | |
Bore | 20 | 25 | 32 | 40 | 50 | 63 | |
Motion Pattern | Double Action | ||||||
Working Medium | Air | ||||||
Operating Pressure Range | 1-9.0kgf/cm2 | ||||||
Ensured Pressure Resistance | 13.5kgf/cm2 | ||||||
Operating Temperature Range | -5-70℃ | ||||||
Operating Speed Range | 100-800mm/s | ||||||
Buffer Type | Adjustable Buffer | ||||||
Port Size | Pt1/8 | PT1/4 |
Feature:
1.It has strong environment adaptability and high temperature resistance.
2.Various rear cover forms make installation more convenient.
3.The material is stainless steel which has strong corrosion resistance.
4.It adopts a two-way sealed structure which has compact size and storage function.
