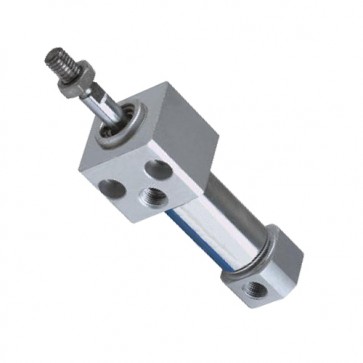

MAR air pressure cylinder Double Action Type 357147

Feature :
1.Compact size
2.Strong corrosion resistance
3.Convenient installation
4.Strong environment adaptability

SKU: 357147

about Engdas Tools

engdas company



MAR air pressure cylinder Double Action Type :

SKU          357147 357148 357149 357150 357151 357152
Bore 20 25 32 40 50 63
Motion Pattern Double Action
Working Medium Air
Operating Pressure Range   1-9.0kgf/cm2
Ensured Pressure Resistance   13.5kgf/cm2
Operating Temperature Range   -5-70℃
Operating Speed Range   100-800mm/s
Buffer Type Adjustable Buffer
Port Size Pt1/8 PT1/4


1.It has strong environment adaptability and high temperature resistance.
2.Various rear cover forms make installation more convenient.
3.The material is stainless steel which has strong corrosion resistance.
4.It adopts a two-way sealed structure which has compact size and storage function.
