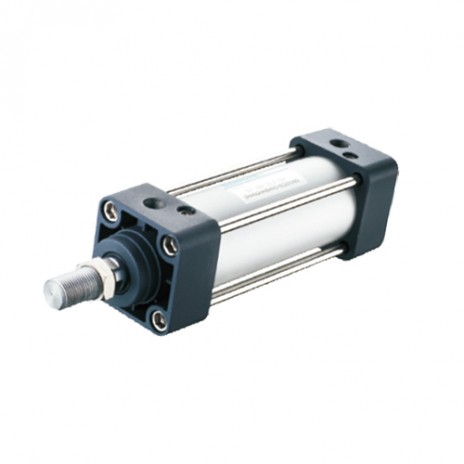

MB penumatic cylinder Double Action Type :
SKU | 357031 | 357032 | 357033 | 357034 | 357035 | 357036 | |
Bore | 32 | 40 | 50 | 63 | 80 | 100 | |
Working Medium | Air | ||||||
Motion Pattern | Double Acting | ||||||
Ensured Pressure Resistance | 15.3Kgf/cm2(1.5Mpa) | ||||||
Max.Pressure | 10.2Kgf/cm2(1.0Mpa) | ||||||
Min.Pressure | 0.5Kgf/cm2(0.05Mpa) | ||||||
Environment and Fluid Temp | -10-60℃ | ||||||
Piston Veocity | 50-500mm/s | ||||||
Buffering | Air Buffering | ||||||
Port Size | G1/8" | G1/4" | G3/8" | G1/2" |
Feature:
1.It can move quickly and react quickly.
2.It has small weight.
3.It is environmentally friendly and does not use environmentally harmful substances.
4.High degree of freedom of installation.
5.Installation parts are rich and can be selected as required.
