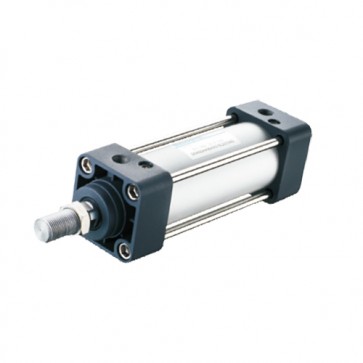

MB penumatic cylinder Double Action Type 357031

1.Small weight
2.Move quickly
3.React quickly
4.Environmentally friendly

SKU: 357031

about Engdas Tools

engdas company



MB penumatic cylinder Double Action Type :

SKU         357031 357032 357033 357034 357035 357036
Bore 32 40 50 63 80 100
Working Medium Air
Motion Pattern Double Acting
Ensured Pressure Resistance 15.3Kgf/cm2(1.5Mpa)
Max.Pressure 10.2Kgf/cm2(1.0Mpa)
Min.Pressure 0.5Kgf/cm2(0.05Mpa)
Environment and Fluid Temp -10-60℃
Piston Veocity 50-500mm/s
Buffering Air Buffering
Port Size G1/8" G1/4" G3/8" G1/2"

1.It can move quickly and react quickly.
2.It has small weight.
3.It is environmentally friendly and does not use environmentally harmful substances.
4.High degree of freedom of installation.
5.Installation parts are rich and can be selected as required.
