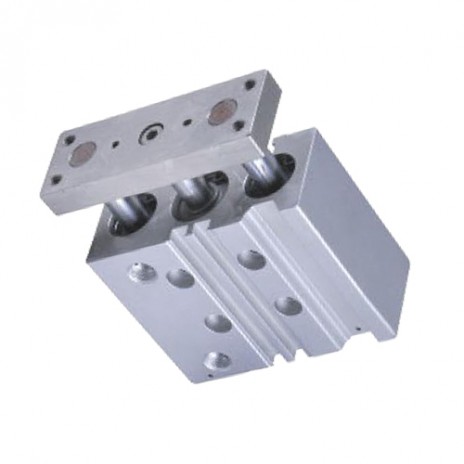

MGP air cylinder parts Double Action Type :
| SKU | 357190 | 357191 | 357192 | 357193 | 357194 | 357195 | 357196 | 357197 | 357198 | 357199 | ||
| Bore | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
| Motion pattern | Air | |||||||||||
| Fluid | Double Action | |||||||||||
| Max.Pressure | 1.0Mpa | |||||||||||
| Min.Pressure | 0.12Mpa | 0.1Mpa | ||||||||||
| Environment and Fluid temp | -10-60℃ | |||||||||||
| Piston Speed | 50-1000mm/s | |||||||||||
| Buffer | Both Ends Buffer | |||||||||||
| Margin of Stroke Length Error | 0+1.5mm | |||||||||||
| Oil Feed | Not Need | |||||||||||
| Bearing | Slide Bearing/Ball Guide Bearing | |||||||||||
|
Precision of Piston |
Slide Bearing | ±0.08° | ±0.07° | ±0.06° | ±0.05° | ±0.04° | ||||||
| Ball Guide Bearing | ±0.10° | ±0.09° | ±0.08° | ±0.06° | ±0.05° | |||||||
| Port Size | M5×0.8 | 1/8" | 1/4" | 3/8" | ||||||||
Feature:
1.The cylinder which has hard anode treatment is wear-resistant and has long life.
2.Tower screws have more stable balance performance.
3.There is a variety of product specifications available here.
4.Magnetic switch without clapboard can be directly installed.
5.The short guide rod is shorten and the end plate thickness is changed which make the quality reduced.
