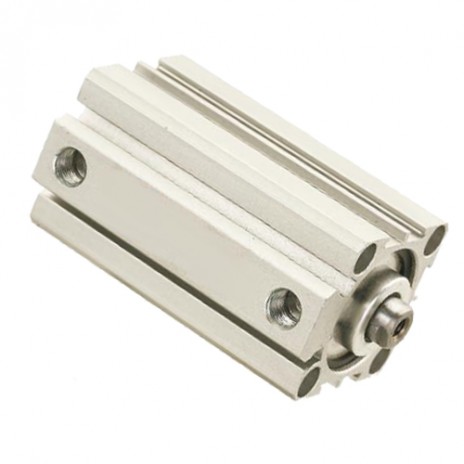

SDA single rod cylinder Thin Type :
SKU | 357072 | 357073 | 357074 | 357075 | 357076 | 357077 | 357078 | 357079 | 357080 | 357081 | |
Bore | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
Motion Pattern | Double Action | ||||||||||
Single Action Extrusion Type Single Action Drawing-IN Type | - - | ||||||||||
Working Medium | Air | ||||||||||
Operating Voltage Rangr | Double Action | 0.1-0.9Mpa | |||||||||
Single Action | 0.2-0.9Mpa | - - | |||||||||
Ensured Pressure Resistance | 1.35Mpa | ||||||||||
Operating Temperature Range | -5-70℃ | ||||||||||
Operating Speed Range | Double Action | 30-500mm/s | 30-350mm/s | 30-250mm/s | |||||||
Single Action | 100-500mm/s | - - | |||||||||
Buffer Type | Fixed Type Buffer | ||||||||||
Pipe Size | M5×0.8 | G1/8" | G1/4" | G3/8" |
Feature:
1.It has light quality.
2.There is no need of oil and can be directly installed without other accessories.
3.Cylinder body has magnetic induction switch groove which is easy to install induction switch.
4.It has a variety of specifications and models according to the actual use of the preferred choice.
5.The piston adopts the special-shaped two-way sealing structure which has compact size and oil storage function.
