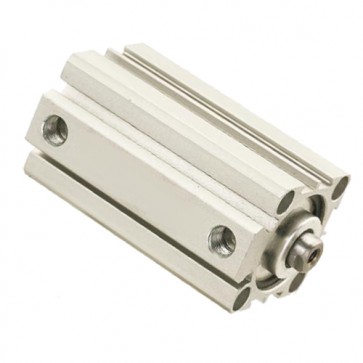

SDA single rod cylinder Thin Type 357072

1.Light quality
2.Various Specifications
3.Various models
4.Compact size

SKU: 357072

about Engdas Tools

engdas company



SDA single rod cylinder Thin Type :

SKU           357072 357073 357074 357075 357076 357077 357078 357079 357080 357081
Bore 12 16 20 25 32 40 50 63 80 100
Motion Pattern Double Action
Single Action Extrusion Type Single Action Drawing-IN Type - -
Working Medium Air
Operating Voltage Rangr Double Action 0.1-0.9Mpa
Single Action 0.2-0.9Mpa - -
Ensured Pressure Resistance 1.35Mpa
Operating Temperature Range -5-70℃
Operating Speed Range Double Action 30-500mm/s 30-350mm/s 30-250mm/s
Single Action 100-500mm/s - -
Buffer Type Fixed Type Buffer
Pipe Size M5×0.8 G1/8" G1/4" G3/8"

1.It has light quality.
2.There is no need of oil and can be directly installed without other accessories.
3.Cylinder body has magnetic induction switch groove which is easy to install induction switch.
4.It has a variety of specifications and models according to the actual use of the preferred choice.
5.The piston adopts the special-shaped two-way sealing structure which has compact size and oil storage function.
