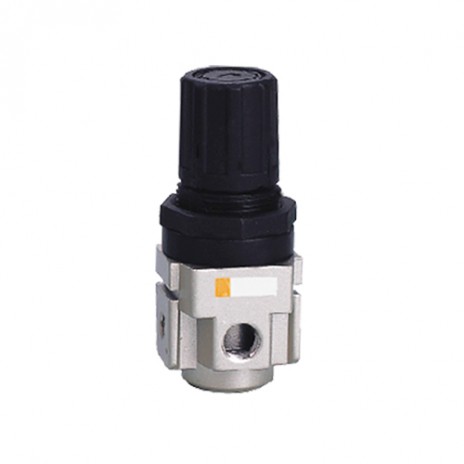

0.02~0.2Mpa automatic gas regulator descriptions:
Name: 0.02~0.2Mpa automatic gas regulator
SKU: 355081-355092
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Pressure Regulating Range: 0.05~0.7Mpa
Valve Type: With Overflow
Accessory: Bracket
Specifications | ||||
Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) |
355081 | 100 | M5 | 1/16'' | 0.11 |
355082 | 550 | 1/8'' | 1/8'' | 0.24 |
355083 | 1/4'' | |||
355084 | 2000 | 1/4'' | 1/8'' | 0.3 |
355085 | 3/8'' | |||
355086 | 2500 | 1/4'' | 1/8'' | 0.47 |
355087 | 3/8'' | |||
355088 | 6000 | 3/8'' | 1/4'' | 0.95 |
355089 | 1/2'' | |||
355090 | 6000 | 3/4'' | 1/4'' | 0.98 |
355091 | 8000 | 3/4'' | 1/4'' | 1.26 |
355092 | 1'' |
0.02~0.2Mpa automatic gas regulator features:
1. Choosing aluminum alloy for body material, more durable.
2. The surface is very smooth and well arranged, more comfortable to use.
3. Gas regulator, Small structure so it is easy to install and use.
4. Fine screw holes can better regulate the valve pressure, so that the air pressure close to constant.
5. Pressure adjustment is stable and its setting is precise.
6. Complete size specifications to meet different needs.
0.02~0.2Mpa automatic gas regulator advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use. The greatest advantage that the gas regulator offers is the ease of use. Because a regulator operates when one capacitor each is simply attached to the input and output sides, in substance little design is needed. And the modern design techniques and High quality material processes have enabled our regulators to remain the best choice for a number of applications. Choosing aluminum alloy for body material, so it is more durable. Moreover, Its small structure makes it easy to install and use. And our fine screw holes can better regulate the valve pressure, so that the air pressure close to constant.
