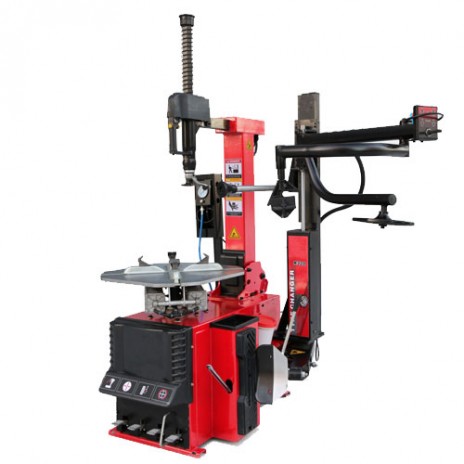

100mm cylinder automatic tyre changer machine of description
Rim clamp from outside: 10''-24''
Rim clamp from inside: 12''-26''
Max.wheel diameter:1040 mm
Tire width: 3''-15''
Working pressure: 8-10 bar
Voltage:380 V/220 V/ 110V
Power: 1.0 KW/1.5 KW
Machine weight: 298 kg
100mm cylinder automatic tyre changer machine of feature
1. It is equipped with 320 power arm, tire pressure block and the supporting tire disc.
2. It can suit different rim ranges to adjust mobile slider.
3. It is efficiency that height of tire-pressing wheel and tire-pressing triangular block are very
precise,pressing these two structures at the same time, the tire can be successfully installed on.
4. It will improve work efficiency of the pneumatic push-pull locking automatically.
5. It is fast to make the jaw grip rim with the central positioning function.
6. We can fix position automatically with the repalaceable swinging arm pressing head.
7. We have motion structure of four automatic alignment gripping jaws on the swivel plate as link mechanism,
has synchronization performance and it can self-centering when gripping from outside to inside.
