Typical Applications
Pan/Tilt cameras,Grill,Oven,Cleaning machine,Garbage disposers,Packing bank note machine,Coffee machine,Medical machine,Manotat,Amusement equipment,infusion pumps,Office equipment,Household appliances,Automatic actuator.
| Gearbox Data | |||||
| No. of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.7 | 10.2, 13.7, 19.2 | 32.5, 50.9, 71.2, 99.5 | 139, 188, 264 369, 516 |
699, 977, 1367, 1911, 2672 3736 |
| Gearbox length "L"mm | 31.8 | 43.1 | 54.4 | 65.7 | 77.7 |
| Max.Gear running torque | 20.0Kgf.cm | 60.0Kgf.cm | 120Kgf.cm | 120Kgf.cm | 120Kgf.cm |
| Max.Gear breaking torque |
60.0Kgf.cm |
180.0Kgf.cm | 360Kgf.cm | 360Kgf.cm | 360Kgf.cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
| Motor data | |||||||||
| Motor name | Rated Volt.(V) | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | ||

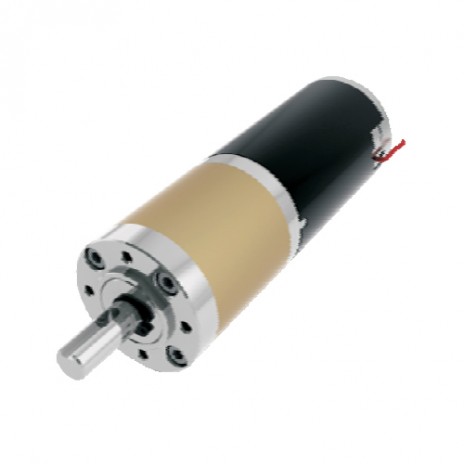

| 171055 | 12 | ≤210 | 3000 | ≤1200 | 2430 | 390 | 9.5 | 2470 | 6.6 |
| 171056 | 12 | ≤440 | 4500 | ≤2050 | 3710 | 480 | 17.8 | 2706 | 10.2 |
| 171057 | 12 | ≤630 | 6000 | ≤4150 | 5240 | 610 | 31.9 | 4700 | 20.4 |
| 171058 | 24 | ≤120 | 3000 | ≤620 | 2590 | 380 | 9.84 | 2160 | 3.5 |
| 171059 | 24 | ≤270 | 4500 | ≤1340 | 3850 | 490 | 18.8 | 3233 | 5.6 |
| 171060 | 24 | ≤360 | 6000 | ≤2050 | 5120 | 650 | 33.2 | 4715 | 12.2 |
| After connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed/reduction ratio. | |||||||||
Note
1.Motor can be installed with magnetic encorder.
2.Standard output shaft after reducing:φ10.0mm,other size of the output shaft can make as client
request.
3.Chart only for reference,products shall prevail the entity.
