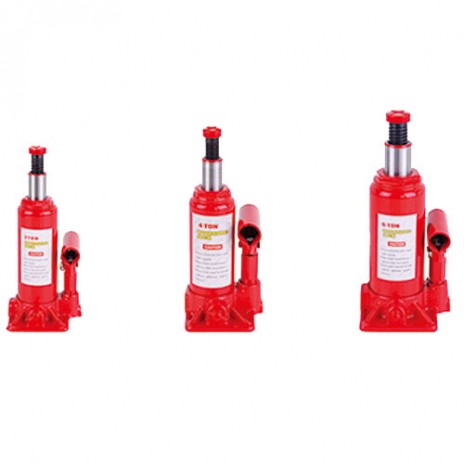

2 T High Quality Small Hydraulic Bottle Jack Description
Data
| Product Name | Small Bottle Jack | ||||
| SKU | Lifting Weight(T) | Min Height(mm) | Lifting Height(mm) | Adjust Height(mm) | Max Height(mm) |
| 320001 | 2 | 158 | 90 | 60 | 308 |
| 320002 | 4 | 195 | 125 | 60 | 380 |
| 320003 | 6 | 197 | 125 | 60 | 382 |
| 320004 | 8 | 205 | 125 | 60 | 390 |
| 320005 | 10 | 205 | 125 | 60 | 390 |
| 320006 | 12 | 215 | 125 | 60 | 400 |
| 320007 | 16 | 225 | 140 | 60 | 425 |
| 320008 | 20 | 244 | 145 | 60 | 449 |
| 320009 | 25 | 244 | 145 | / | 389 |
| 320010 | 30 | 285 | 180 | / | 465 |
| 320011 | 32 | 285 | 180 | / | 465 |
| 320012 | 50 | 300 | 180 | / | 480 |
| 320013 | 100 | 340 | 180 | / | 520 |
Packing
| SKU | N.W.(KG) | Package | Size9CM) | QTY/CTN(PCS) | G.W.(KG) | 1x20' Container(PCS) |
| 320001 | 2.3 | Color Box | 52x25.5x19 | 10 | 24 | 7800 |
| 320002 | 3.2 | Color Box | 46x26.5x22.5 | 8 | 26 | 5400 |
| 320003 | 4.2 | Color Box | 38x27.5x22.5 | 6 | 25 | 4200 |
| 320004 | 5.1 | Color Box | 29.5x27.5x22.5 | 4 | 20 | 3340 |
| 320005 | 5.8 | Color Box | 30.5x29.5x24 | 4 | 23 | 3000 |
| 320006 | 7.0 | Color Box | 30.5x16.5x24 | 2 | 14 | 2500 |
| 320007 | 8.0 | Color Box | 31.5x17x24.5 | 2 | 16 | 2250 |
| 320008 | 11.0 | Color Box | 34.5x19.5x27 | 2 | 21 | 1500 |
| 320009 | 11.5 | Color Box | 34.5x19.5x27 | 2 | 21 | 1500 |
| 320010 | 13.5 | Color Box | 37.5x19.5x31 | 2 | 28 | 1240 |
| 320011 | 15.0 | Color Box | 37.5x19.5x31 | 2 | 29 | 1060 |
| 320012 | 32.0 | Color Box | 26x24x33 | 1 | 30 | 540 |
| 320013 | 75.0 | Color Box | 32.5x26.5x36 | 1 | 77 | 240 |
2 T High Quality Small Hydraulic Bottle Jack Features
1. The top of jack expands the friction surface, which has a better effect on anti-skidding.
2. The Jack is portable as a tool of 2.3 kg weight.
3. The base is thick, it is more stable when we use the Jack.
4. The high quality screw can adjust the height and the screw do not easy to be corroded.
5. The rocker arm can be assembled easily and the rocker arm cover an area of small.
6. The rocker arm can be used a tool for rotating oil return valve and it is also able to lift the jack.
2 T High Quality Small Hydraulic Bottle Jack Advantage
The base of jack is very thick and the base also bigger than others. The base of jack is all made of steel. The base of jack makes jack more stable when the jack is working. The base of jack is thick and it can make jack more beautiful. The base is square and it is very stable. The four corners of base are blunt and it can make workers more save when they use the jack.
