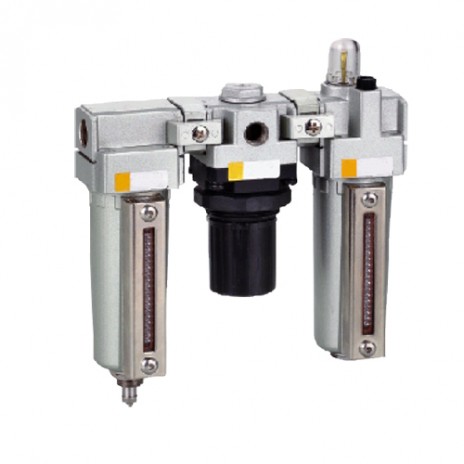

2000~5000 series air filter combination the regulator descriptions:
Name: 2000~5000 series air filter combination the regulator
SKU: 355218-355228
Accessories: 2 Brackets
Ensured Pressure Resistance: 1.5MPa
Hightest Working Pressure: 1.0MPa
Ambient and Fluid Temperature: 5~60℃
Filter Precision: 25µm/5μm/50μm
Recommended Oil Use: Turbine NO.1 Oil ISOVG32
Body Material: Aluminum Die Casting
Pressure Regulating Range: 0.05~0.85MPa
Valve Type: With Overflow
Specifications | ||||
Model | Rated Flow(L/Min) | Port Size(G) | Pressure Gauge Size(G) | Weight(kg) |
355218 | 500 | 1/8'' | 1/8'' | 0.90 |
355219 | 1/4'' | |||
355220 | 1500 | 1/4'' | 1/8'' | 1.45 |
355221 | 3/8'' | |||
355222 | 2000 | 1/4'' | 1/8'' | 1.23 |
355223 | 3/8'' | |||
355224 | 4000 | 3/8'' | 1/4'' | 2.50 |
355225 | 1/2'' | |||
355226 | 4500 | 3/4'' | 1/4'' | 2.60 |
355227 | 5000 | 3/4'' | 1/4'' | 4.30 |
355228 | 1'' |
2000~5000 series air filter combination the regulator features:
1. Containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption.
2. Filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
3. Stainless steel bracket, so more stable and more relieved to use.
4. Exquisite appearance, surface oxidation spray treatment, more durable and corrosion resistant.
5. Compared with the hydraulic, pneumatic mode can be used in high temperature occasions.
6. Pressure valve, pull up to unlock, self-regulating air pressure.
2000~5000 series air filter combination the regulator advantages:
As we all know, the structure of the air source processor is simple, lightweight and easy to install. Its working medium is air mainly, Compared with the hydraulic medium, It is not easy to burn, so it is safer to use.Our filter combination are the perfect choice for the most demanding applications. By combining these three items, you will enjoy the excellent regulator flow characteristics with minimal pressure drop and high quality lubrication to your vital pneumatic components.It containing resistance to the mist, the oil in the oil cup fully atomized into particles, so that the piston fully lubricated, thereby extending the product life and saving fuel consumption. And the filtration accuracy of 25µm/5μm/50μm is available to meet the needs of different environments.
